Key Features

  • Vacuum Coated Reflector: High-efficiency PC reflector with premium vacuum coating for maximum light projection.
  • Clear PC Lens: Optical-grade Polycarbonate lens provides superior impact resistance and UV protection.
  • Universal Voltage: Optimized for both 12V and 24V electrical systems for versatile fleet integration.
  • Precision Mounting: 3-hole design at 70 PCD ensures a secure, vibration-resistant fit.
  • Compact Form Factor: 55mm diameter engineered for space-efficient integration on modern bus fronts.

Specifications PC CLEAR 12V / 24V

Housing/Reflector
Polycarbonate (Vacuum Coated)
Lens Material
High-Transmittance PC Clear
Operating Voltage
12V / 24V DC Compatible
Dimensions
Dia 55 mm x 60 mm Length
Light Source
Bulb – 12V/24V – 21W fitment
Mounting Type
3 Hole Installation @ 70 PCD

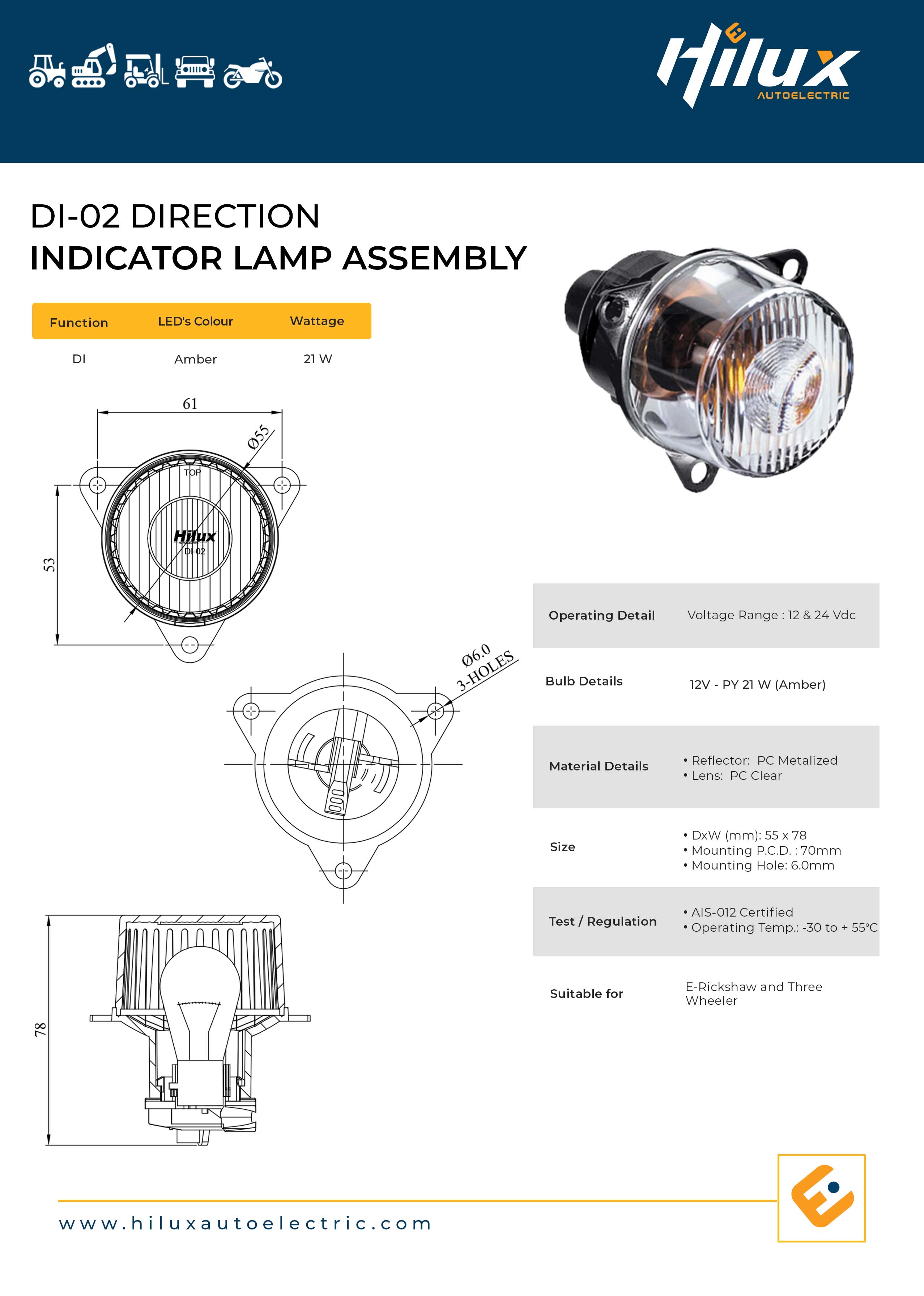

Specification Document — DI-02

Download technical blueprints and photometric data (PDF, 1.5 MB)

Download
