Key Features
- Die-cast Aluminium Multi-surface Reflector — precision light output
- High-Clarity Crystal Glass Lens — scratch and heat resistant
- Aluminium Mounting Frame — provides heavy-duty stability
- Powerful H7 Halogen System for superior visibility
- 90 mm Compact Form Factor
- Premium OEM quality for Volvo, Coaches, and Buses
Specifications
HALOGEN SYSTEM
CRYSTAL GLASS
Size
90 mm
Halogen Bulb
H7 12V 55W
Options
H7 24V 70W (Available on request)
Technical Build
Die-cast aluminium reflector with Aluminium Frame
Application
Volvo, Bus, Coach, and Heavy Commercial Vehicles

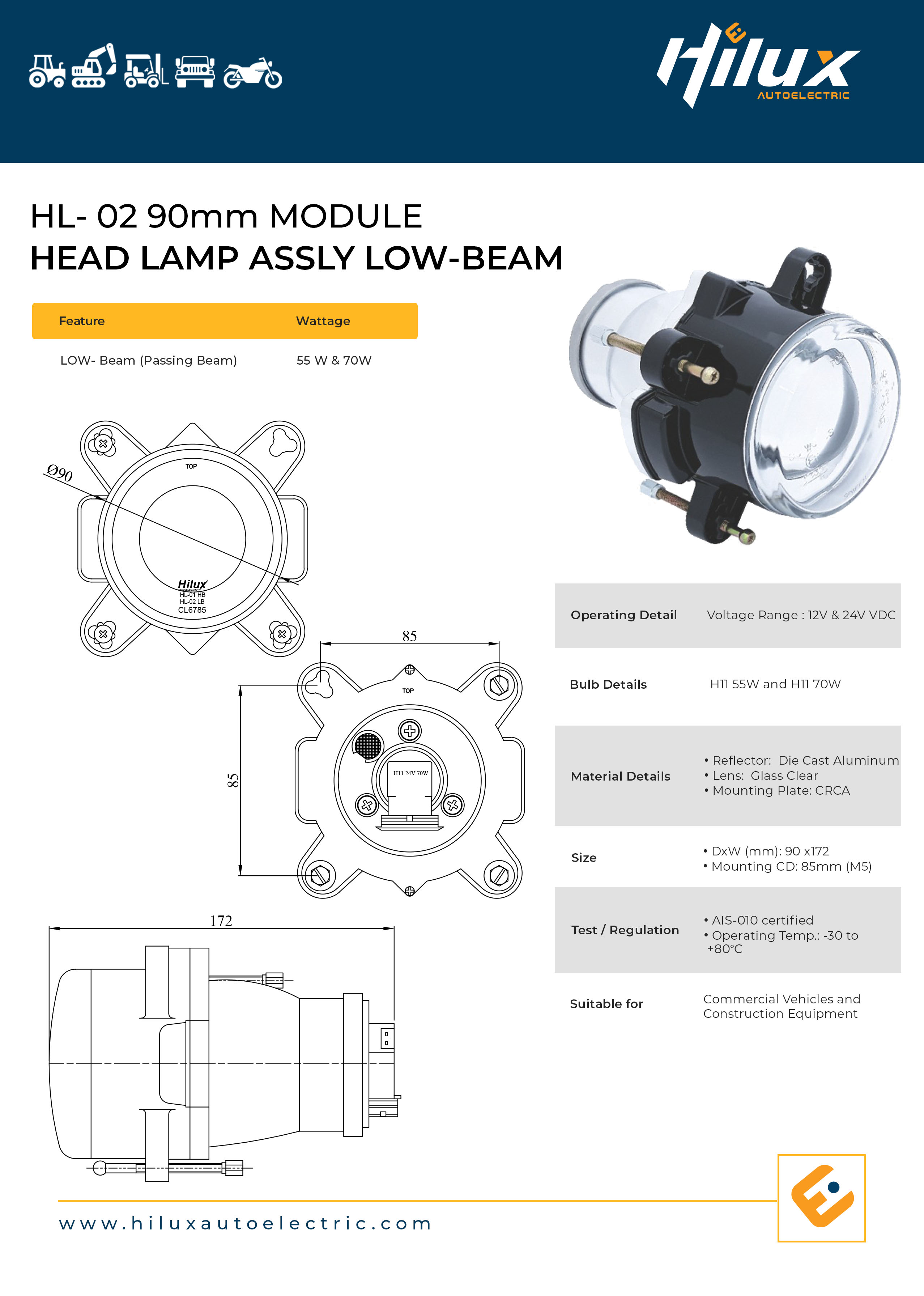

Specification Document - HL-02
Download technical blueprints and documentation (PDF, 1.5 MB)
