Key Features

  • Dual Function LED: Integrated Reverse (10 LEDs) and Rear Position (16 LEDs) functions for high visibility.
  • PMMA Clear Lens: Optical-grade PMMA lens with Inner Red Translucent PC for superior clarity and durability.
  • Operating Range: Wide voltage range of 09 - 16 Vdc, perfectly optimized for 12V vehicle systems.
  • IP-65 Rated: Fully protected against dust and water ingress, ensuring reliability in harsh weather.
  • Reverse Polarity Protected: Advanced electrical protection to prevent damage during installation or power surges.
  • Certified Quality: AIS-012 Certified and tested for extreme temperatures ranging from -30°C to +60°C.

Specifications PMMA CLEAR 09 - 16 Vdc

Housing / Reflector
Housing: ABS / Reflector: PC
Lens Material
PMMA Clear (Inner: Red Translucent PC)
Operating Voltage
Voltage Range: 09 - 16 Vdc
Dimensions
102 x 107 x 45 mm (DxW: 100 x 5.5)
Light Source
LED (Reverse: 10 Nos White | Rear: 16 Nos Red)
Mounting Type
Mounting P.C.D.: 70 mm
Protection Class
IP - 65 | AIS-012 Certified

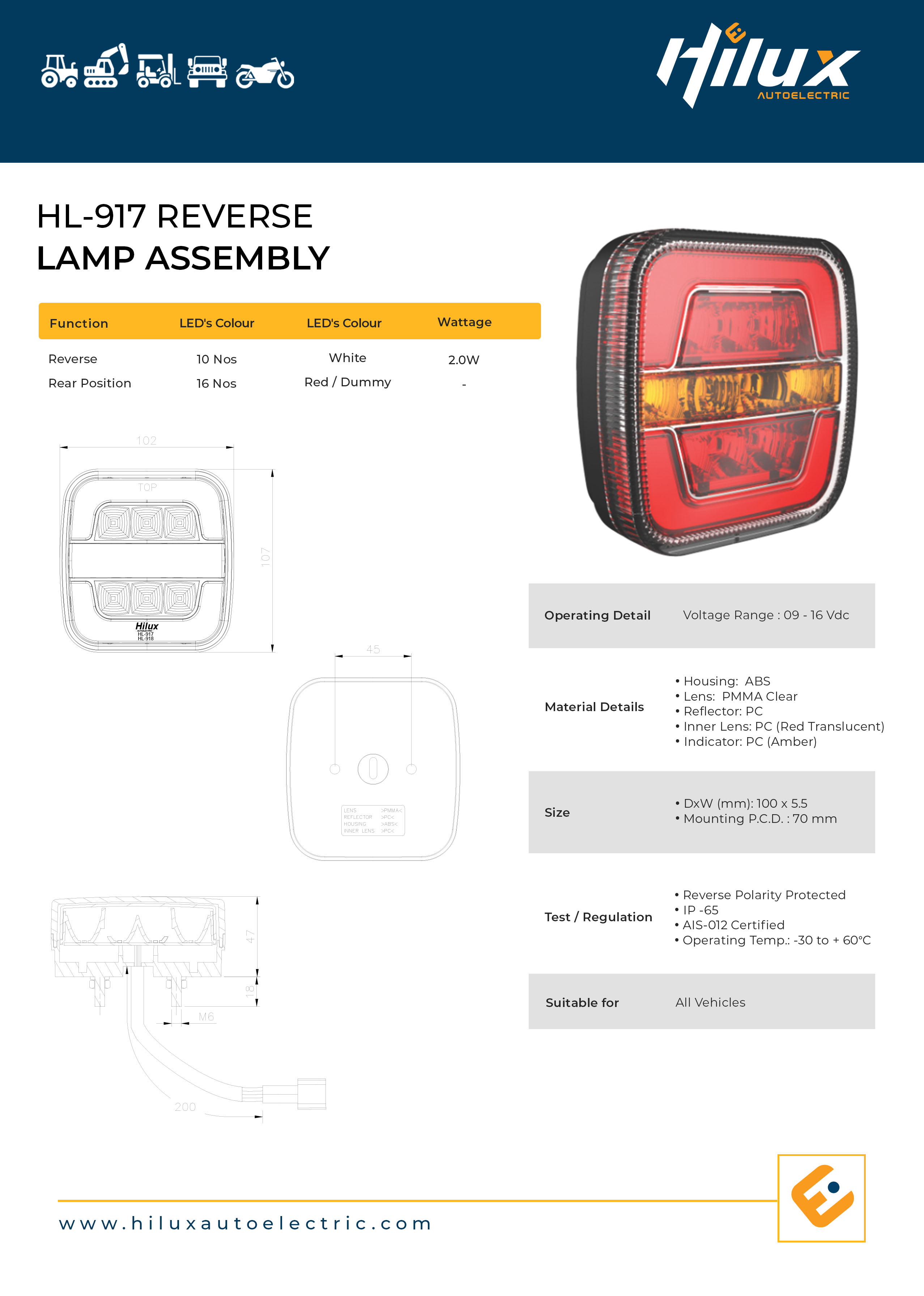

Specification Document
