Key Features
- Advanced Construction: Engineered with Ultrasonic Welding for a superior, airtight seal and long-term durability.
- Premium Lens Quality: Features a PMMA Clear lens with high-transmittance Red and Amber PC inner lenses for crisp signaling.
- All-Weather Protection: IP-65 certified and tested for extreme temperatures ranging from -30°C to +60°C.
- Circuit Safety: Built-in Reverse Polarity Protection to prevent damage during installation or electrical surges.
- Compliance & Standards: AIS-012 and E-mark Certified, ensuring international quality and safety regulations for all vehicles.
Specifications IP-65 09 - 16 Vdc
Housing / Reflector
ABS Housing / PC Reflector
Lens Material
PMMA Clear (Inner: Red/Amber PC)
Operating Voltage
09 - 16 Vdc (Reverse Polarity Protected)
Dimensions (LxWxH)
107 x 102 x 47 mm
Light Source (LEDs)
Stop (2.1W), Rear Position (2.0W), DI (1.7W)
Mounting Type
45mm (M6) C.D. Mounting

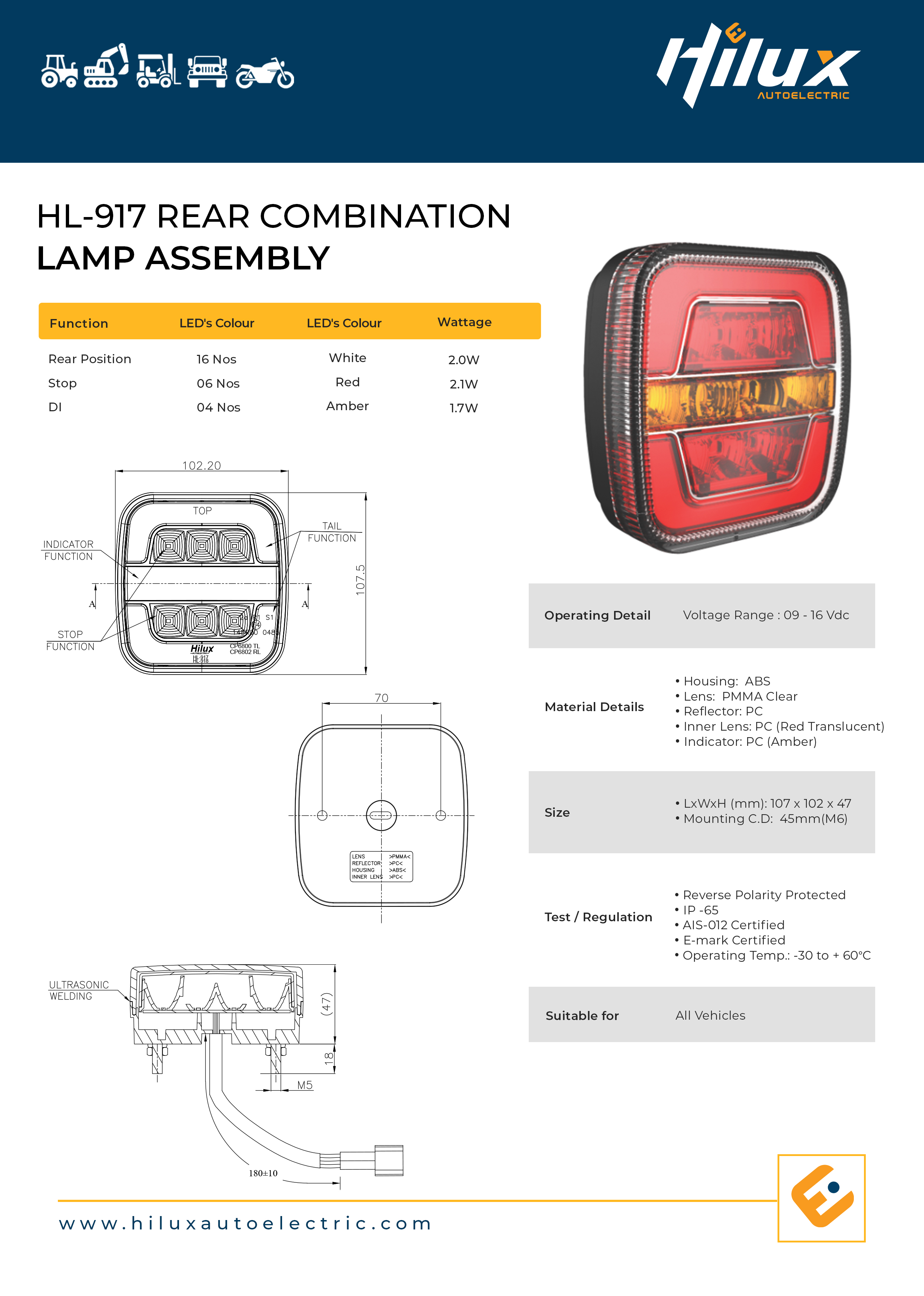

Specification Document
Download technical blueprints and photometric data (PDF, 1.5 MB)
