Key Features
- 27 LEDs × 0.5W — high-intensity, wide-angle signaling
- Wide voltage range — 8V to 30V, suits 12V & 24V systems
- Acrylic lens — excellent light transmission & durability
- ABS base — lightweight & impact-resistant body
- PC Metalized reflector — maximizes LED light output
- Energy-efficient LED — long service life, low power draw
- Designed for buses & trailers
Specifications LED 8V–30V ACRYLIC
Product Group
Rear Signaling Lamps (LED)
Lamp Type
LED Rear Signaling Lamp
Light Source
27 LEDs × 0.5W
Total LED Power
13.5W
Operating Voltage
8V – 30V DC
Lens Material
Acrylic (PMMA)
Base Material
ABS (Acrylonitrile Butadiene Styrene)
Reflector
PC Metalized
Application
Bus / Trailers

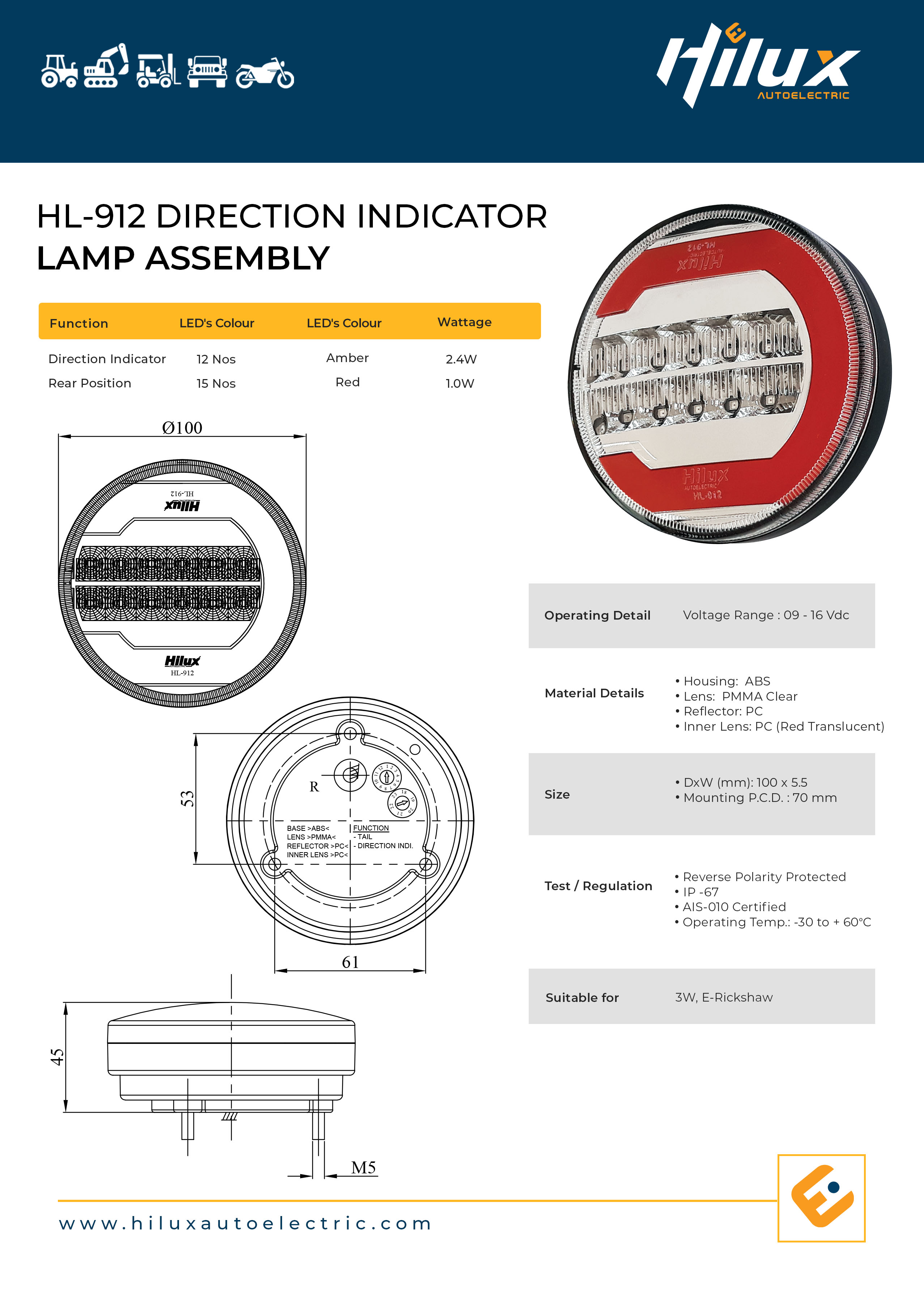

Specification Document — HL-912 DI
Download detailed product specifications (PDF, 1.5 MB)
