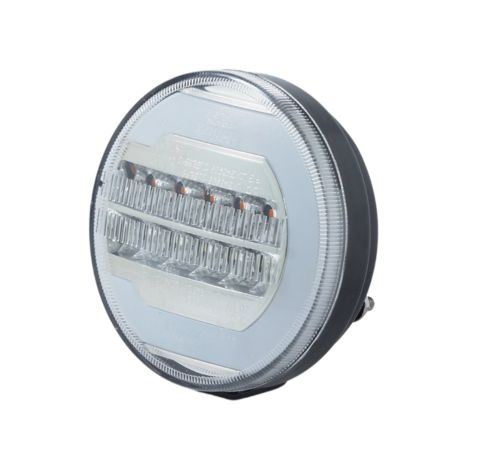

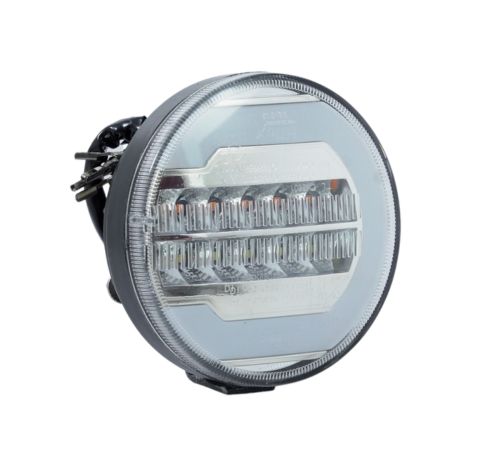

Dual Function LED FCL — Integrated Front Position Lamp (FPL) and Direction Indicator (DI)
High-Intensity 27 LED Array — Delivers 13.5W of powerful, wide-angle signaling
Multi-Voltage Compatibility — Operates seamlessly across 8V to 30V for 12V and 24V systems
Premium Acrylic (PMMA) Lens — Exceptional light transmission with high UV and scratch resistance
Durable ABS Body — Impact-resistant base designed for heavy-duty commercial use
Precision PC Metalized Reflector — Engineered to maximize LED output and beam consistency
Advanced Energy Efficiency — Long service life with significantly lower power draw than traditional lamps
Commercial Fleet Optimized — Specifically engineered for buses, coaches, and trailers

Specifications LED FCL 8V–30V PMMA/ABS

Product Group

Front Combination Lamps (LED FCL)

Lamp Composition

Integrated Front Position Lamp (FPL) & Direction Indicator (DI)

Light Source

High-Intensity 27 LED Array

Operating Voltage

8V – 30V DC (Multi-Voltage)

Total LED Power

13.5W Optimized Performance

Lens Material

High-Grade Acrylic (PMMA)

Base Material

Durable ABS (Acrylonitrile Butadiene Styrene)

Reflector System

PC Metalized Multi-Surface Optics

Application

Commercial Buses, Coaches, and Heavy-Duty Trailers

Download detailed product specifications (PDF, 1.5 MB)
