RH 01 View 1

Key Features

  • High-Performance IP68 Waterproofing — Fully submersible and dust-tight for extreme site conditions.
  • Ultra-Wide Voltage Range (12V – 80V DC) — Universal compatibility with light and heavy machinery.
  • Extreme Temperature Resilience — Reliably operates from -30°C to +77°C.
  • High Decibel Output — Ensures safety and awareness in loud construction environments.
  • Rugged Housing — Built to withstand heavy impact and industrial vibrations.
  • Reverse Gear Sync — Instant response when vehicle is shifted into reverse.
Specifications 12–80V DC IP68 WATERPROOF
Protection Rating
IP68 (Waterproof & Submersible)
Voltage Range
12V – 80V DC (Multi-Voltage)
Operating Temp.
- 30°C to +77°C
Housing Type
Industrial Grade High-Impact Casing
Application
Excavators, Earthmovers, Forklifts, and Heavy Industrial Vehicles

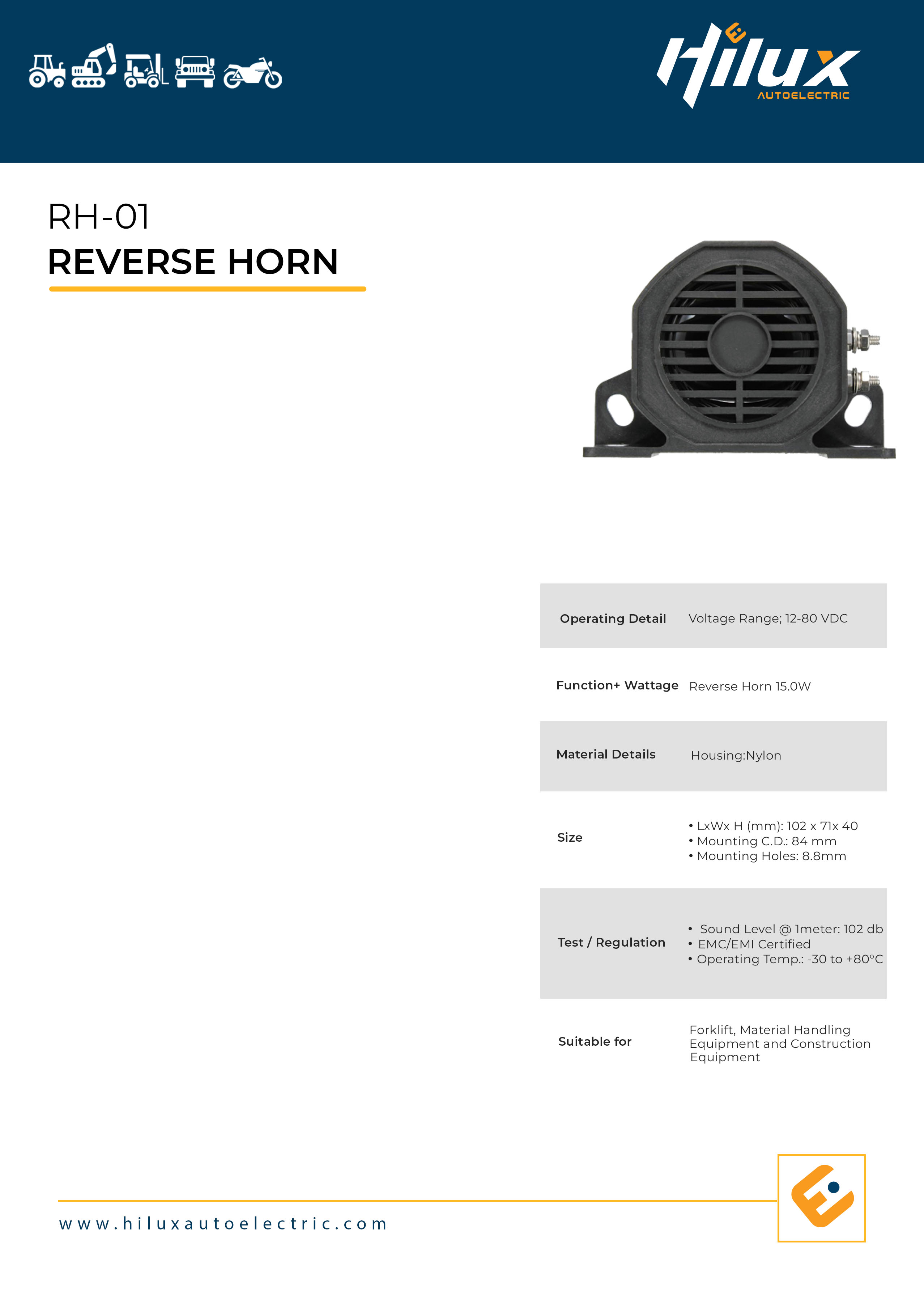

Specification Document - RH 01

Download technical blueprints and documentation (PDF, 1.5 MB)

Download
